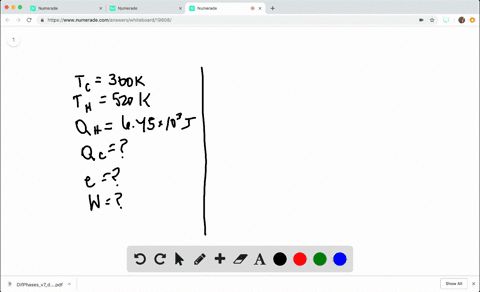

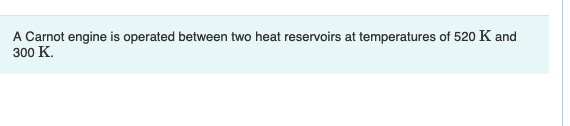

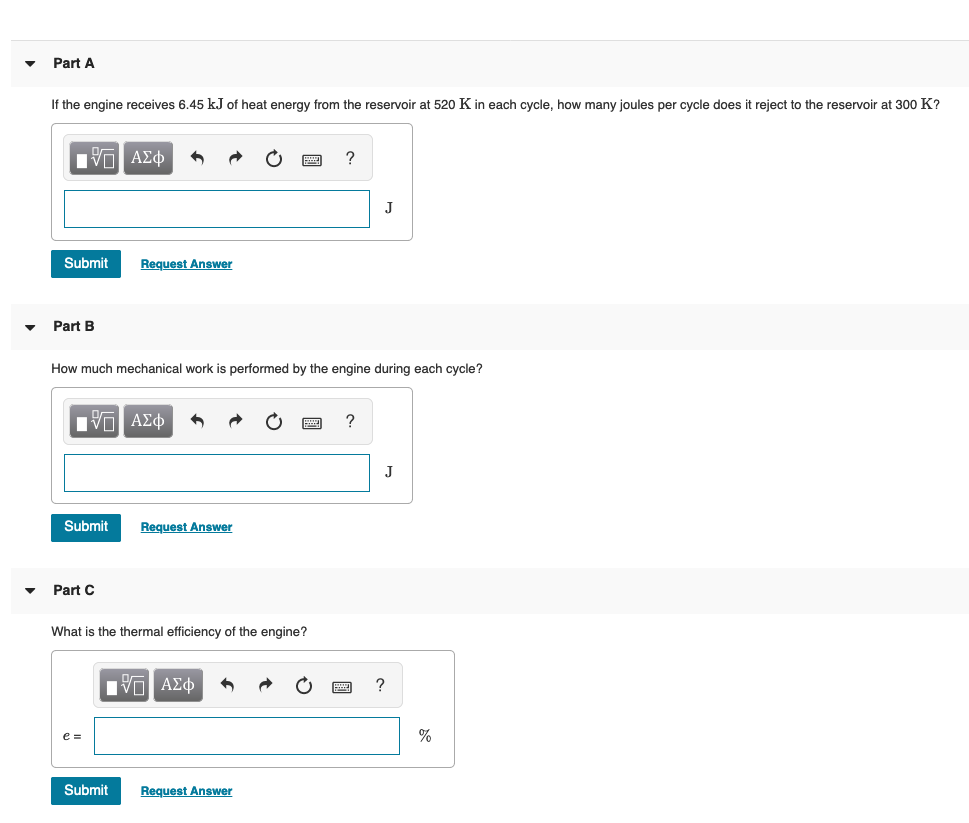

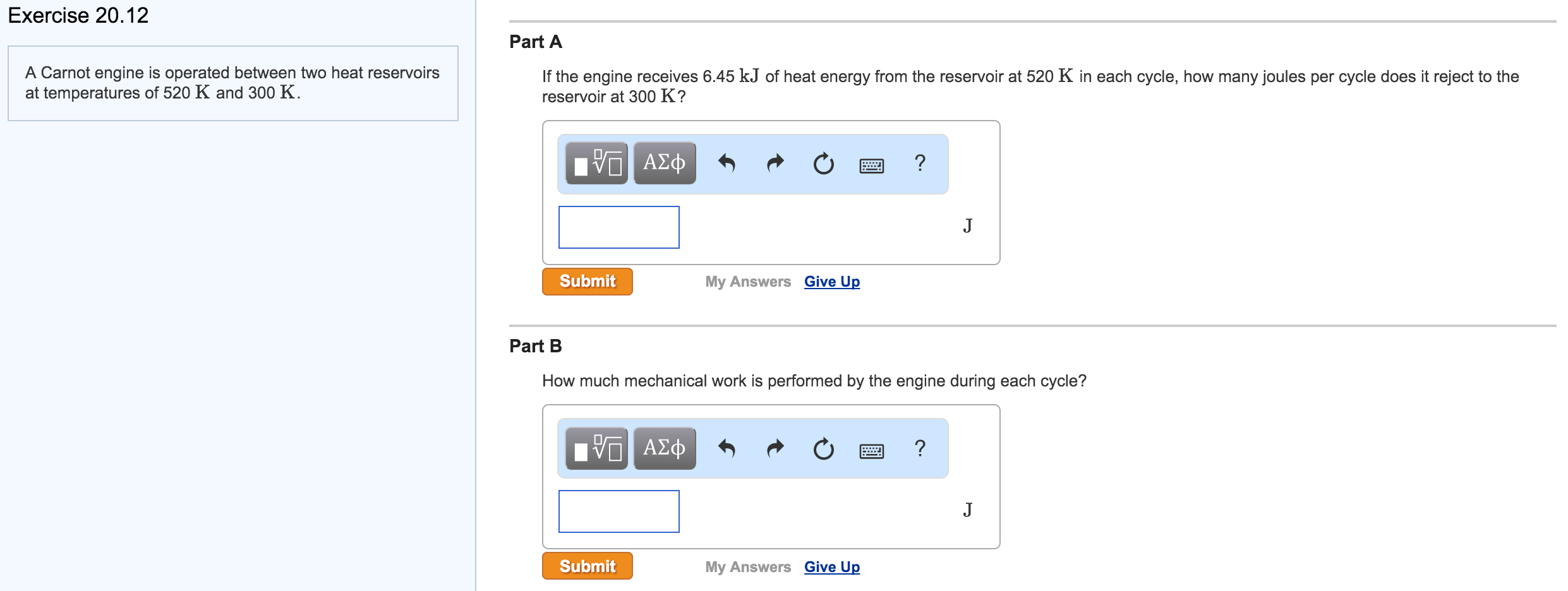

A Carnot engine is operated between two heat reservoirs at temperatures of 520K and 300K.?

source : yahoo.com

A Carnot engine is operated between two heat reservoirs at temperatures of 520K and 300K.?

a)

The net entropy change of the engine per cycle equals zero. On the one hand it gains entropy by absorbing heat from hot reservoir and some entropy may be produced within the engine due to irreversibilities . On the other hand it looses entropy by discarding heat to the cold reservoir.

∆S_hot + ∆S_irr = ∆S_cold

Since heat transfer occurs at constant temperature:

Q_hot/T_hot + ∆S_irr = Q_cold/T_cold

For an ideal Carnot engine, which operates reversibly – i.e. ∆S_irr=0:

Q_hot/T_hot = Q_cold/T_cold

Hence,

Q_cold = (T_cold/T_hot)∙Q_hot

= (300K / 520K) ∙ 6.45kJ

= 3.72kJ

b)

The net energy change of the heat engine equals zero, too. So the heat transferred to the engine equals the heat discarded plus the work done by the engine:

Q_hot = Q_cold + W

Hence,

W = Q_hot – Q_cold

= 6.45kJ – 3.72kJ

= 2.73kJ

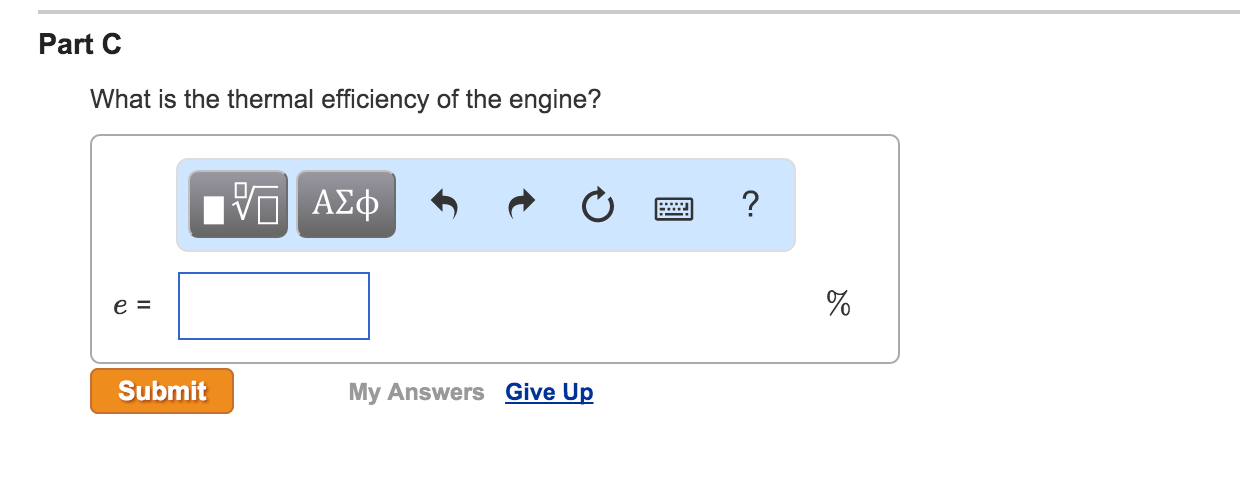

c)

Thermal efficiency is defined as the ratio of useful work done to heat absorbed:

ŋ = W/Q_hot

= 2.73kJ / 6.45kJ

= 0.423

= 42.3%
