How to Calculate Bond Order

Updated March 08, 2020

By Kevin Beck

Reviewed by: Lana Bandoim, B.S.

The way atoms join together to form molecules (which are called compounds if the atoms are different) is a phenomenon called chemical bonding. Although individual types of atoms, called elements, are usually described in terms of their stand-alone number of protons, neutrons and electrons, most atoms in fact prefer to exist in the company of one or more other atoms.

The reason this happens is the same essential reason sentient creatures often pair off: Each has something that “completes” the other in some way. With atoms, it has to do with the way their energy changes as a result of interactions between the positively charged protons and negatively charged electrons both within and between bonding atoms.

What Are Chemical Bonds?

Chemical bonds come in three basic types: Metallic bonds, which involve lots of “runaway” electrons not associated with particular parent atoms; ionic bonds, in which one atom donates an electron to another; and covalent bonds, in which the electron “orbitals” of bonding atoms overlap, resulting in sharing of electrons rather than offloading or gaining them outright.

Electron orbitals are graphical and conceptual representations of the most probable positions of electrons around atoms.

Covalent bonds are the most versatile, as they come in three kinds, depending on how many electron pairs are shared between bonding atoms. A bond involving one electron pair (one atom shared by each atom) is called a single bond. A bond involving two electron pairs is a double bond, and a three-electron pair bond is a triple bond.

What Is Bond Order?

Bond order refers to the kind of bond in a molecule with two atoms. In molecules with three atoms, such as CO2, it is determined by a simple arithmetic process described below. Bond order relates to bond energy, since bonding itself is a phenomenon of energy optimization between atomic components.

Bond energy tends to increase with decreasing bond length, and hence with increasing bond order, because single bonds are longer than double bonds, which in turn are longer than triple bonds.

A bond between two atoms stabilizes in the position it does (that is, with the nuclei of the bonding atoms spaced a precise distance apart) because this represents the optimal balance between the various positive and negative charges in play. The electrons of one atom are attracted to the proton(s) of the other, but at the same time their respective protons repel each other.

Bond Order Formula

To determine the bond order of a diatomic molecule such as H2, CO or HCl, you simply look at the kind of bond involved and that is your answer. A molecule of hydrogen gas (H2) has single bond and a bond order of 1. A molecule of oxygen gas (O2) has a double bond and a bond order of 2. The triple bond of CN gives it a bond order of 3.

If you are unfamiliar with drawing Lewis structures of molecules, this would be a good time to practice these.

To calculate the bond order for a larger molecule, you need to know the number of bonds as well as the nature of those bonds (single, double or triple). You add up the total number of bonding pairs and divide by the total number of bonds. For example, for NO3-, you have three bonds: One double bond (2 electron pairs) and two single bonds (1 + 1= 2 electron pairs). The bond order is therefore 4/3 = 1.33.

Bond Energy Calculator Online

See the Resources for a set of bond energy tables that include both length and bond energy for a variety of diatomic molecules with bond orders of 1, 2 and 3.

Bond Order, Lengths, and Strengths

Bond Order, Lengths, and Strengths – The overall bond order is 3. What is nice about overall bond order is that it really IS an integer because you can just count all the bonding pairs in a molecule and those will be an integer number. In ozone the total number of bonding pairs (lines) is 3. Those are only in 2 regions though. Therefore we average and get 3/2 or 1.5 bond order forIn molecular orbital theory, bond order is defined as half of the difference between the number of bonding and antibonding electrons. Bond order = [ (Number of electrons in bonding molecules) – (Number of electrons in antibonding molecules)]/2. 2 Know that the higher the bond order, the more stable the molecule.One model for estimating bond orders and charges in a compound is to simply take the average of those values from all (important) contributing resonance structures. \ [Average Bond Order =\overline {\rm BO} =\dfrac {\sum BO_i} {n} \tag {3.6.0}\]

3 Ways to Calculate Bond Order in Chemistry – wikiHow – Bond length depends on the number of bonded electrons of two atoms or the bond order. Higher the bond order, shorter the bond length will be due to strong pulling forces of positively charged nuclei. The unit of bond length is picometer. In single, double and triple bonds, the bond length increases in the order of triple bond<double bond<singleAverage bond order: (-2.5 + (-2.5) + (-2.5) + (-2.5))/4 = -2.5 ??? i just wanted to update of my previous post. I finally got it!Bond order will be T o t a l N o. o f c a n o n i c a l s t r u c t u r e s T o t a l n o. o f b o n d s = 2 5 = 2. 5 The third structure is not possible as nitrogen cannot have two negative charges so we will consider only two structures.

3 Ways to Calculate Bond Order in Chemistry - wikiHow

3.6: Resonance Structures – Chemistry LibreTexts – The average bond order is 1.5. > Here's how I calculate the average bond order. You draw the resonance contributors as usual. There are six equivalent contributors to the sulfate ion. Because they are all equivalent, we need to look at only one of them.The average bond order in the sulphate ion is 1.5. Was this answer helpful? 0 (0) Upvote (0) Choose An Option That Best Describes Your Problem. Answer not in Detail. Incomplete Answer. Answer Incorrect. Others. Answer not in Detail. Incomplete Answer. Answer Incorrect. Others. Thank you. Your Feedback will Help us Serve you better.CO32- has three resonating structures. The way to calculate the bond order for most conpounds having resonating structures is:(No.of bonds/No.of resonating structures) Since, CO32- has 4 bonds, Thus answer will be 4/3 or 1.3333.. I hope I was able…

Solved: The Average Bond Order Is The Number Of Bonds Betw ...
Solved: Use The References To Access Important Valu The Av ...
Average As O bond order in AsO 4 3 is O O N O O N O O N NO ...
Plot of average bond order, Bo, and average d-orbital ...
(PDF) Dependence of the most probable and average bond ...
Calculated bond lengths and vibrational frequencies for ...
What is average bond order between Cl and O atoms in (ClO3 ...
How to Calculate Bond Order and Bond Length - Pediaa.Com
Resonance Theory | OChemPal

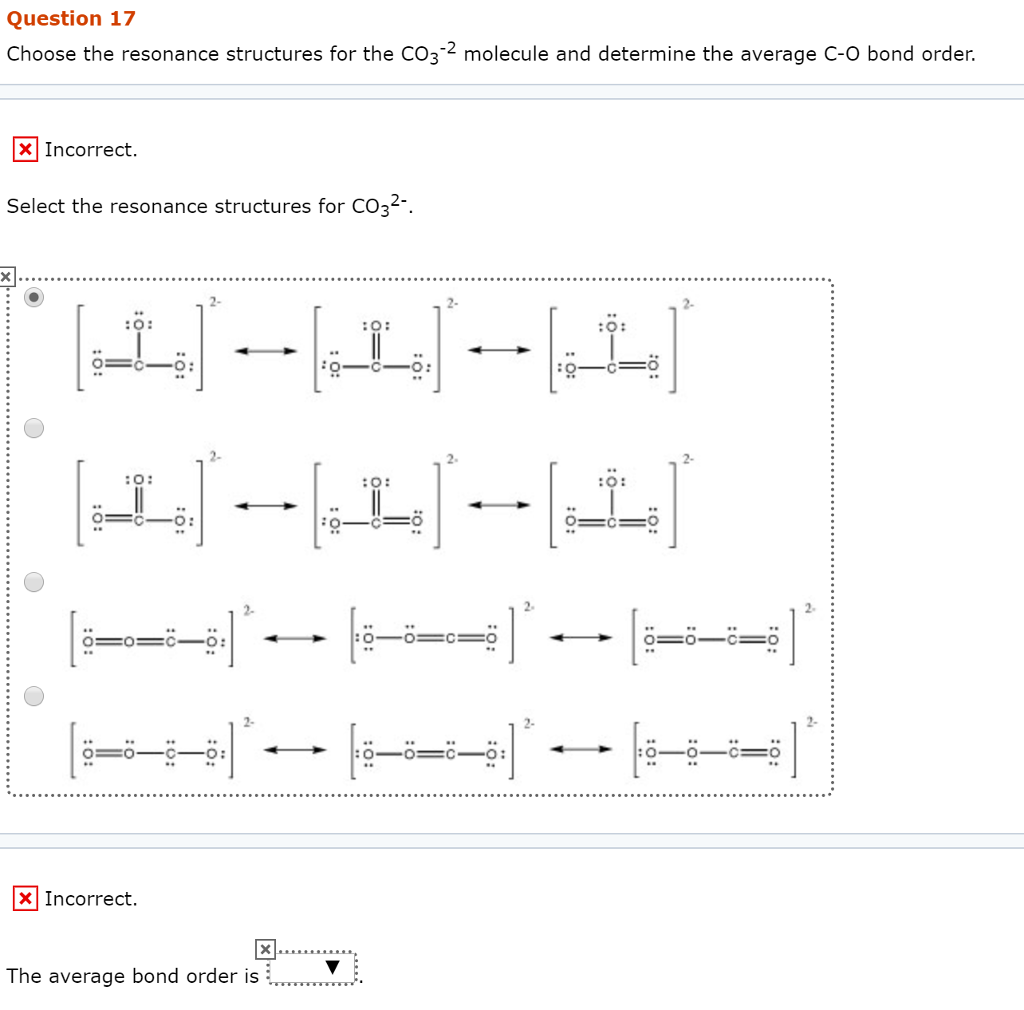

Solved: Question 17 Choose The Resonance Structures For Th ...
